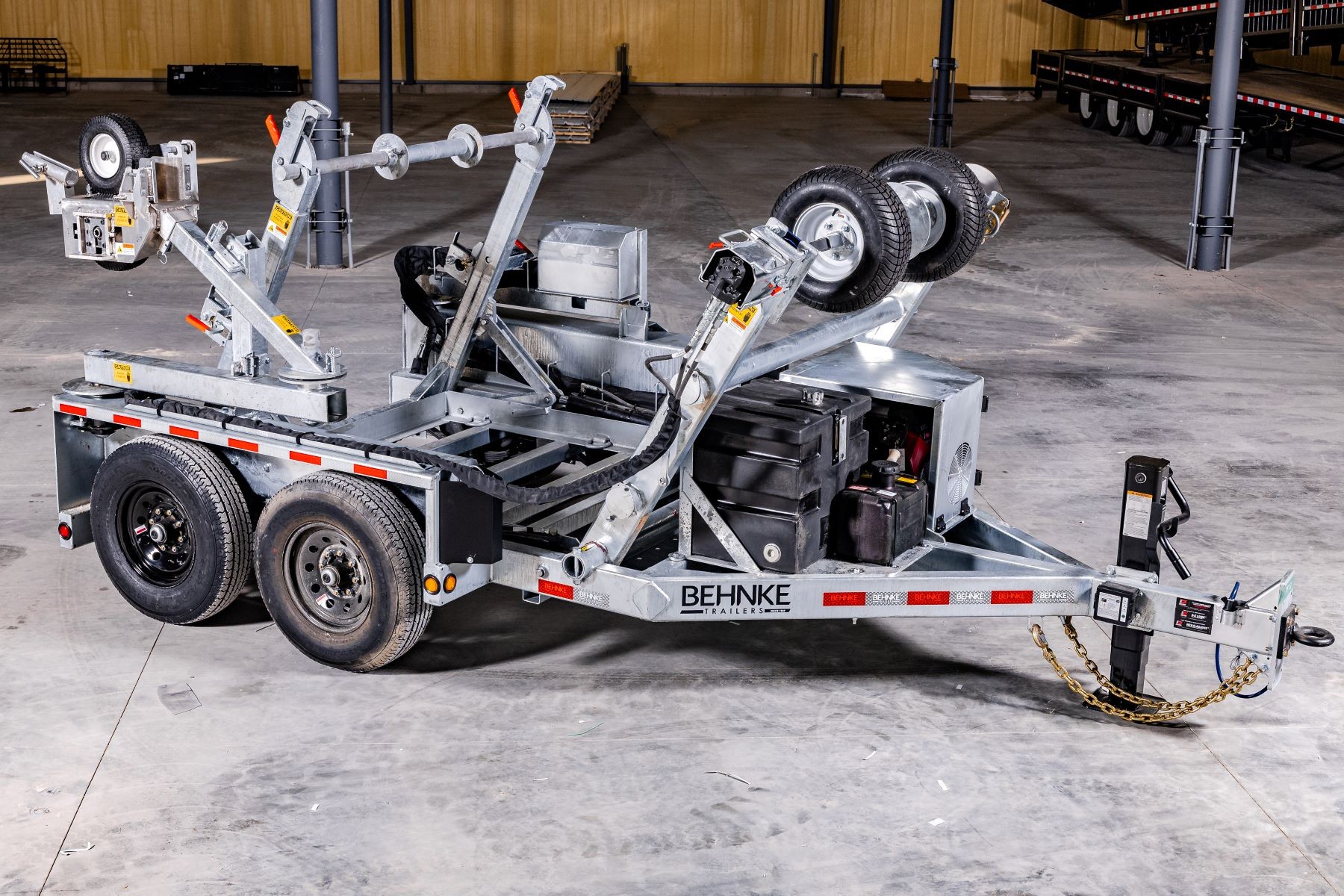

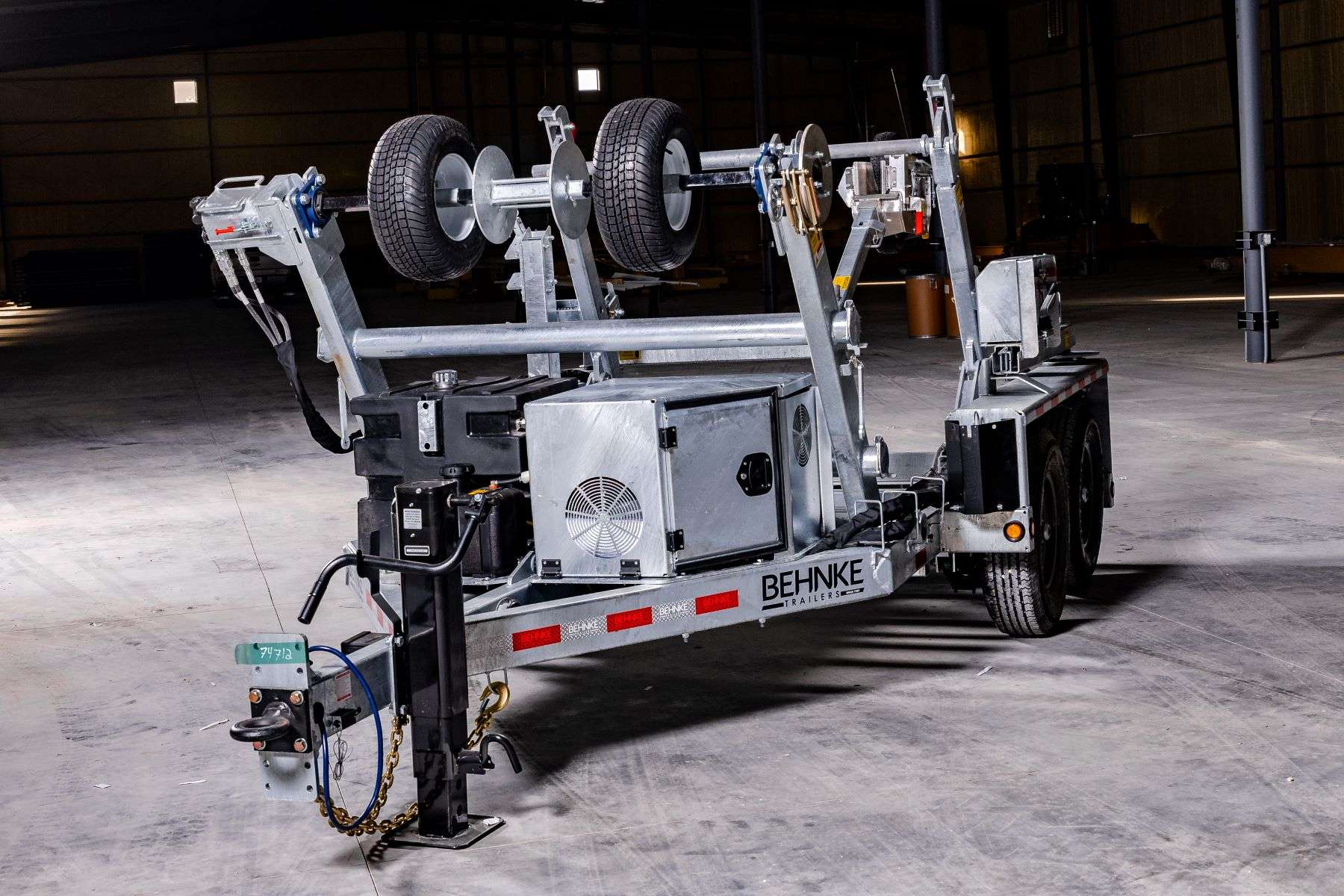

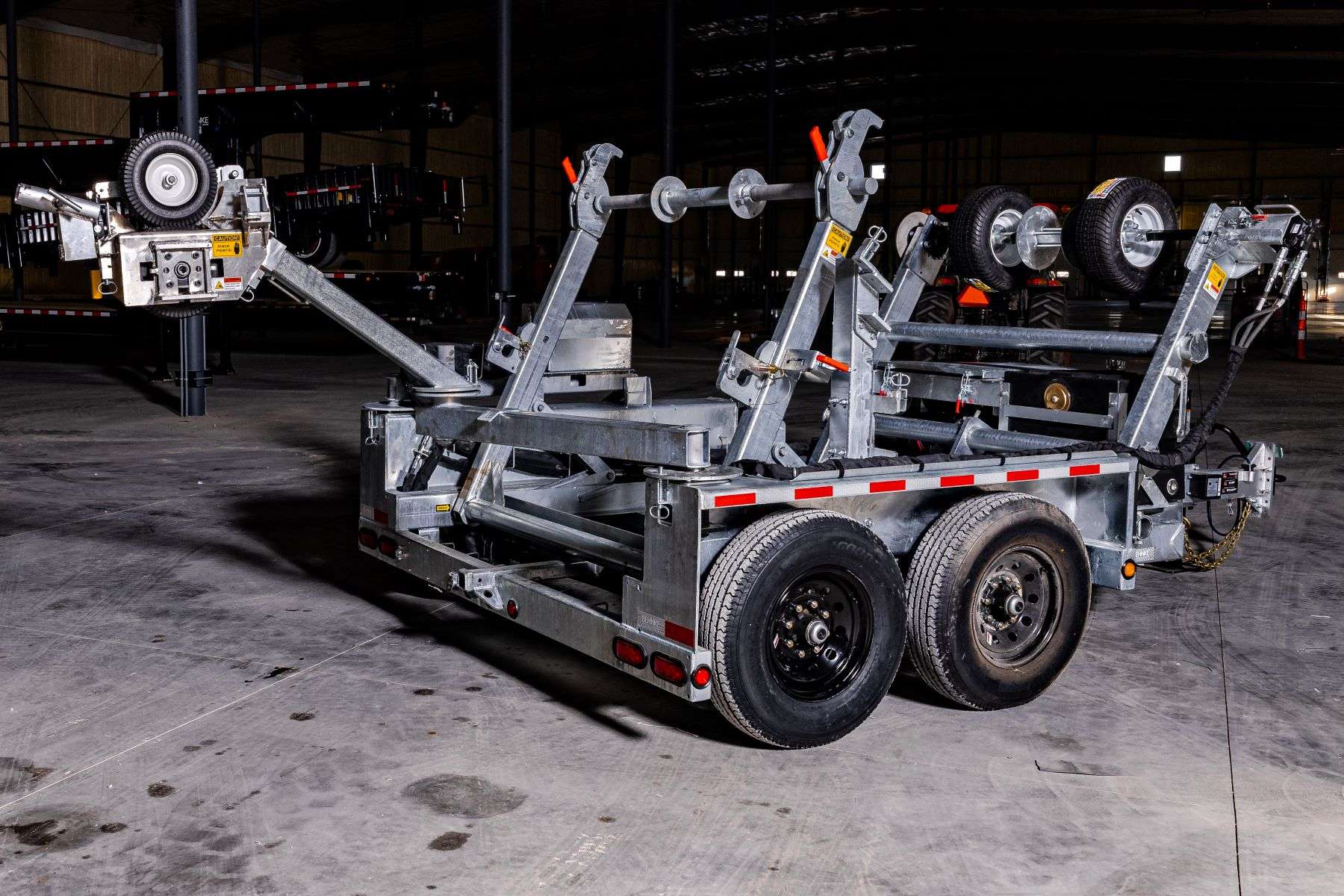

New 2026 Behnke RT1400E Hyd. Reel - Figure 8 Cable Trailer

New 2026 Behnke RT1400E Tandem Axle Hyd. Reel – Figure 8 Cable Trailer

• 2-7,000 lb. Dexter axles – elec. brakes
• Slipper spring suspension
• ST235/85R16 E – 10 ply tires
• 1-12,000 lb. front jack
• Adjustable pintle eye OR ball coupler
• Rectangular tube construction 3 in. by 6 in. - 3/16 in. thick
• Heavy duty ¼ in. thick custom fenders

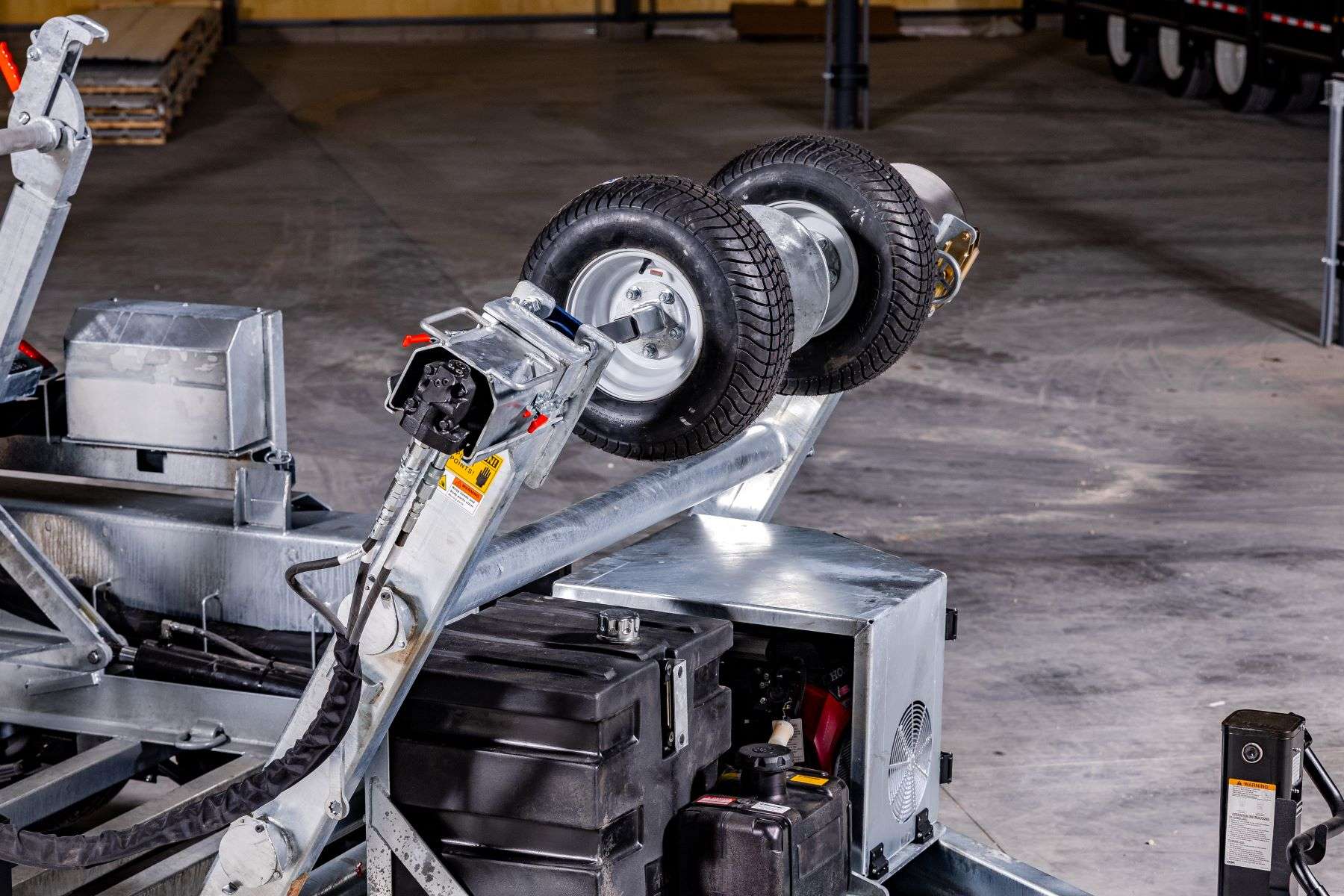

• Hydraulic loading reel bar with lockable collars – can accommodate a 55.25 in. wide by 10 ft. diameter reel – 8,000 lb. capacity
• Semi – automatic dispensing and respooling system

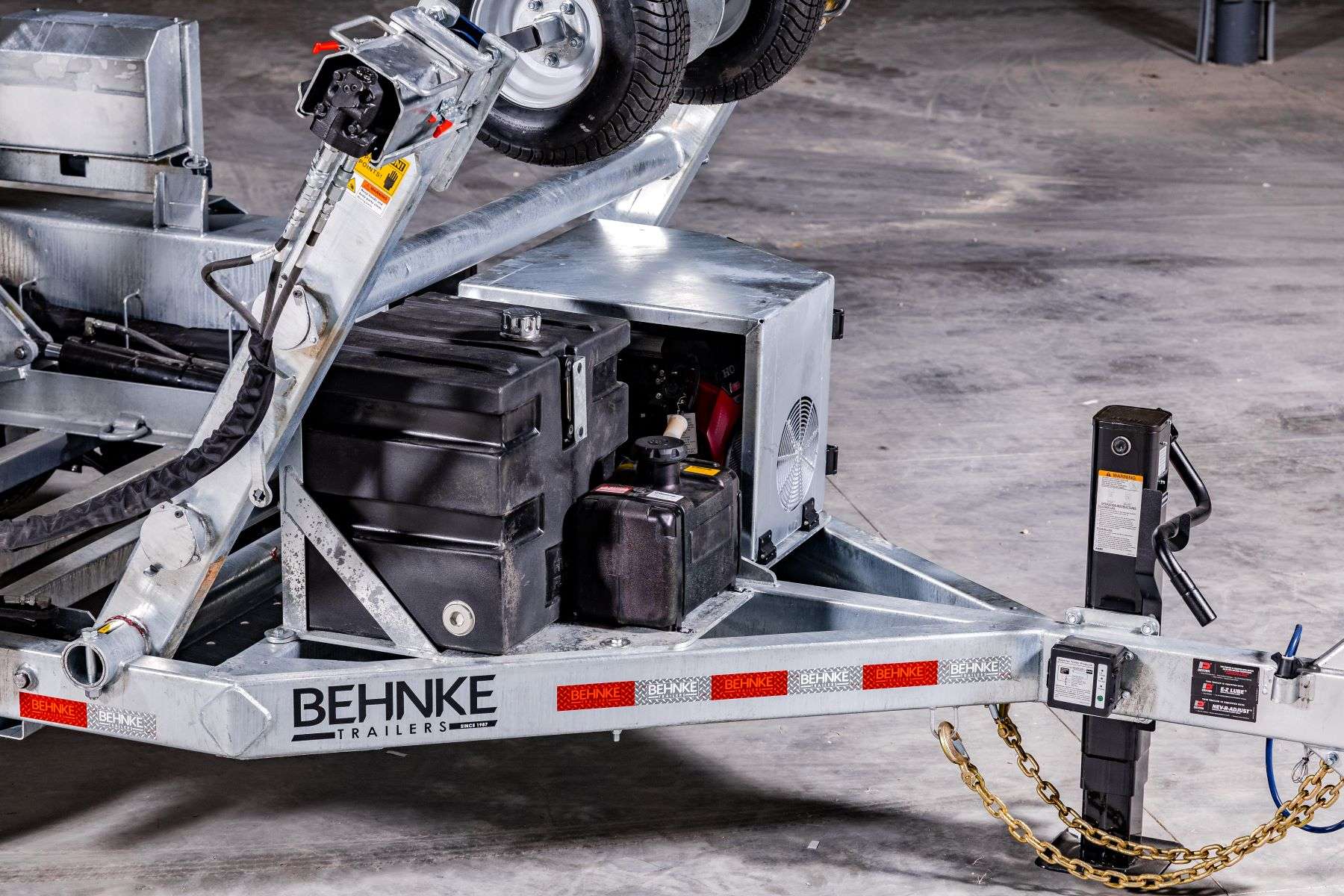

• Honda iGX700 22 hp gas powered hyd. power unit (EFI fuel injected with quick drain valve)
• Vented steel enclosure for hyd. motor
• 25 gallon hydraulic reservoir
• 8 gallon fuel tank with shut off valve
• 12VDC battery

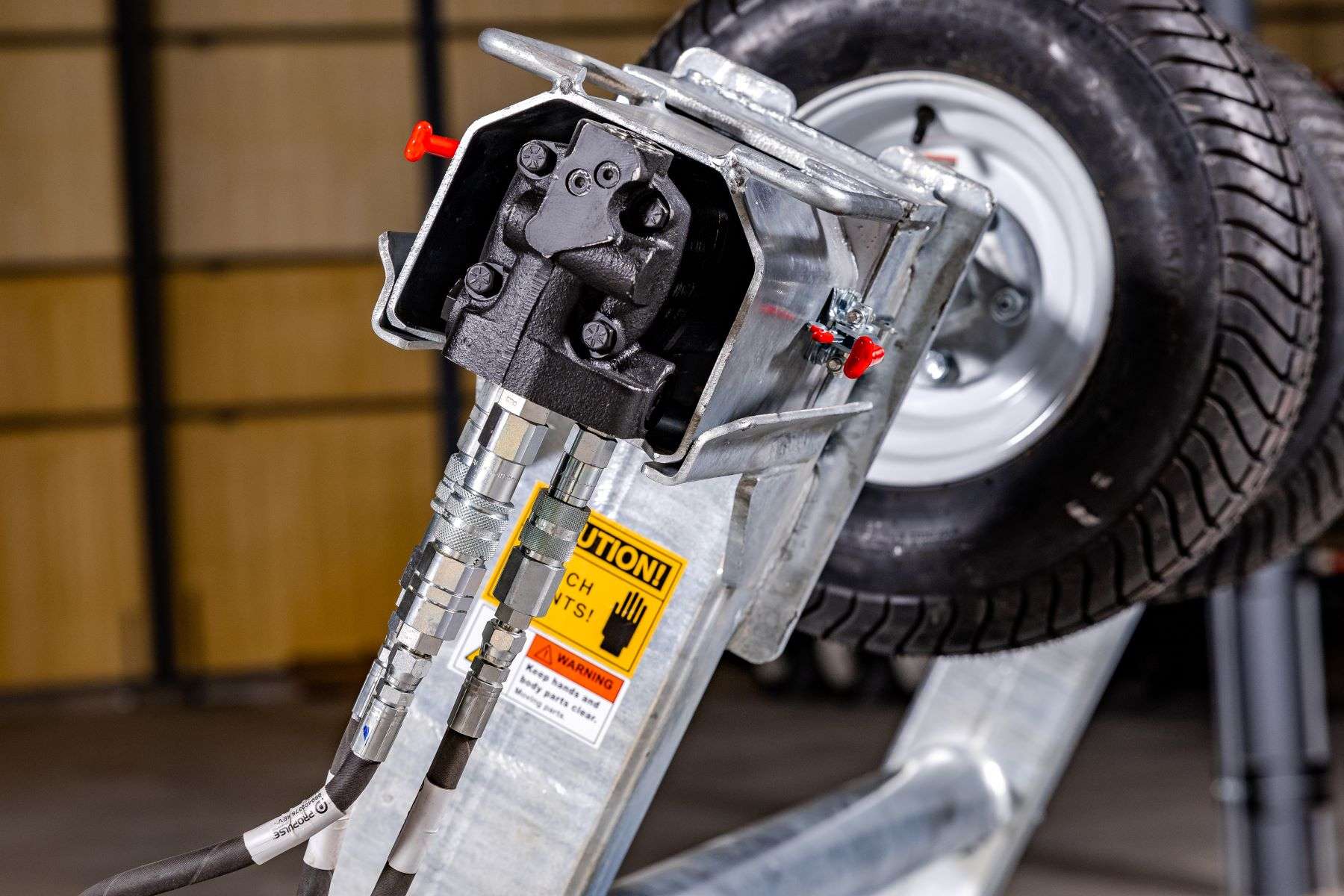

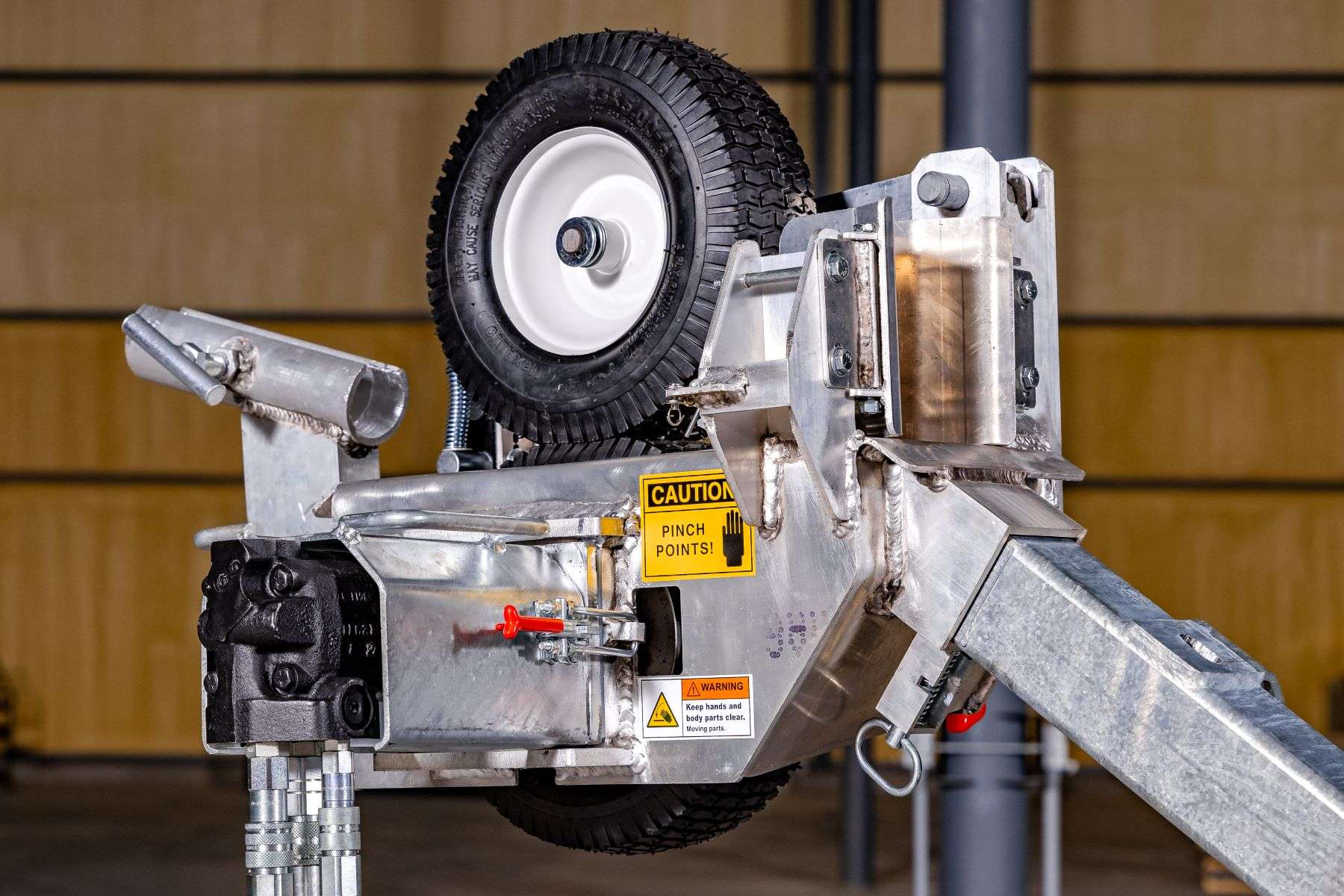

• 2 – speed hydraulic motor w/ friction detent valve and adj. flow control valve to adjust speed (operates both the front drive reel and the rear figure 8 takeout assembly)
• Ability to dispense cable and create a figure 8 pattern to avoid cable twist and potential damage
• Rest guides for hydraulic motor on front drive reel and rear figure 8 takeout assembly
• 12 in. stainless steel overspin disc with brake caliper

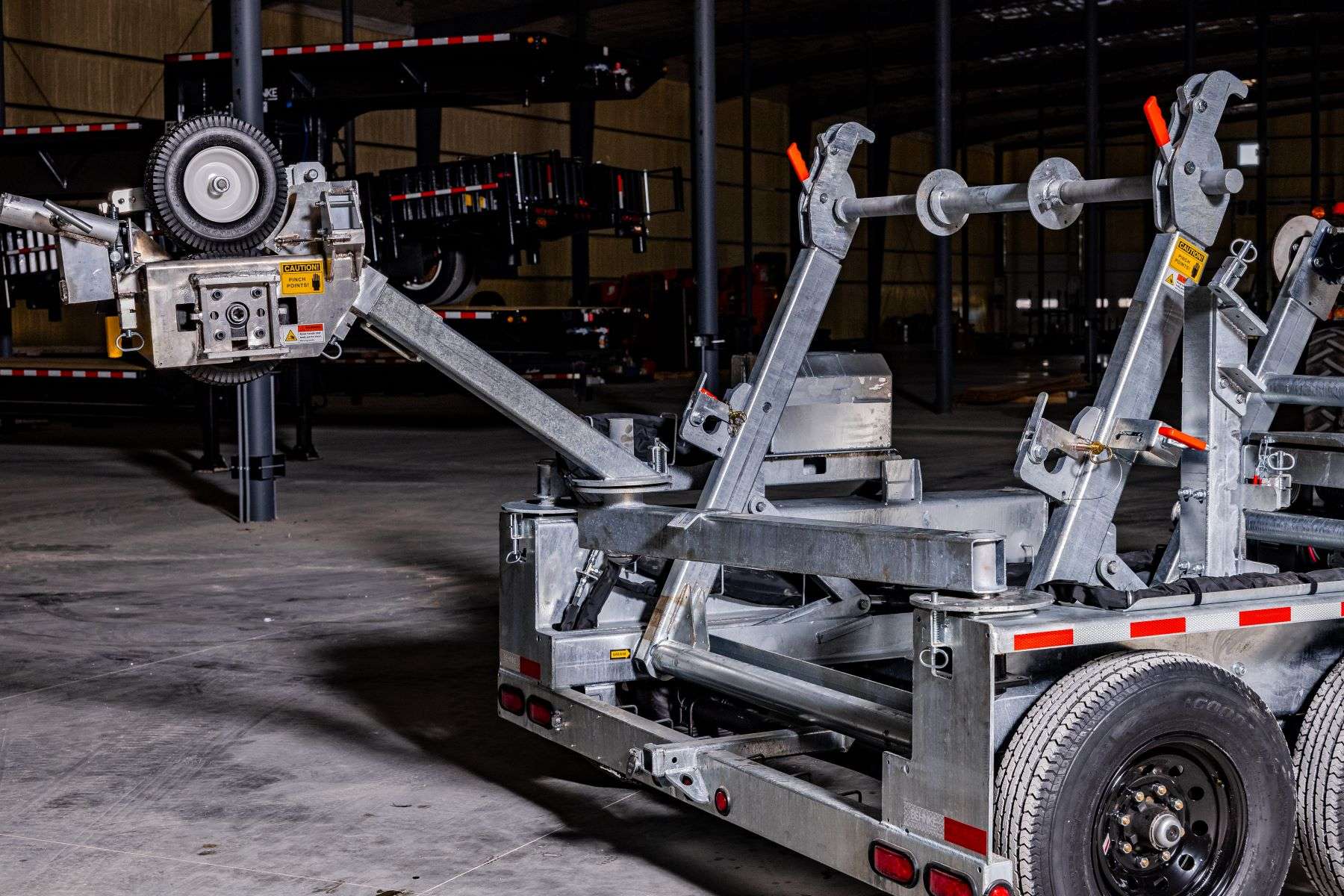

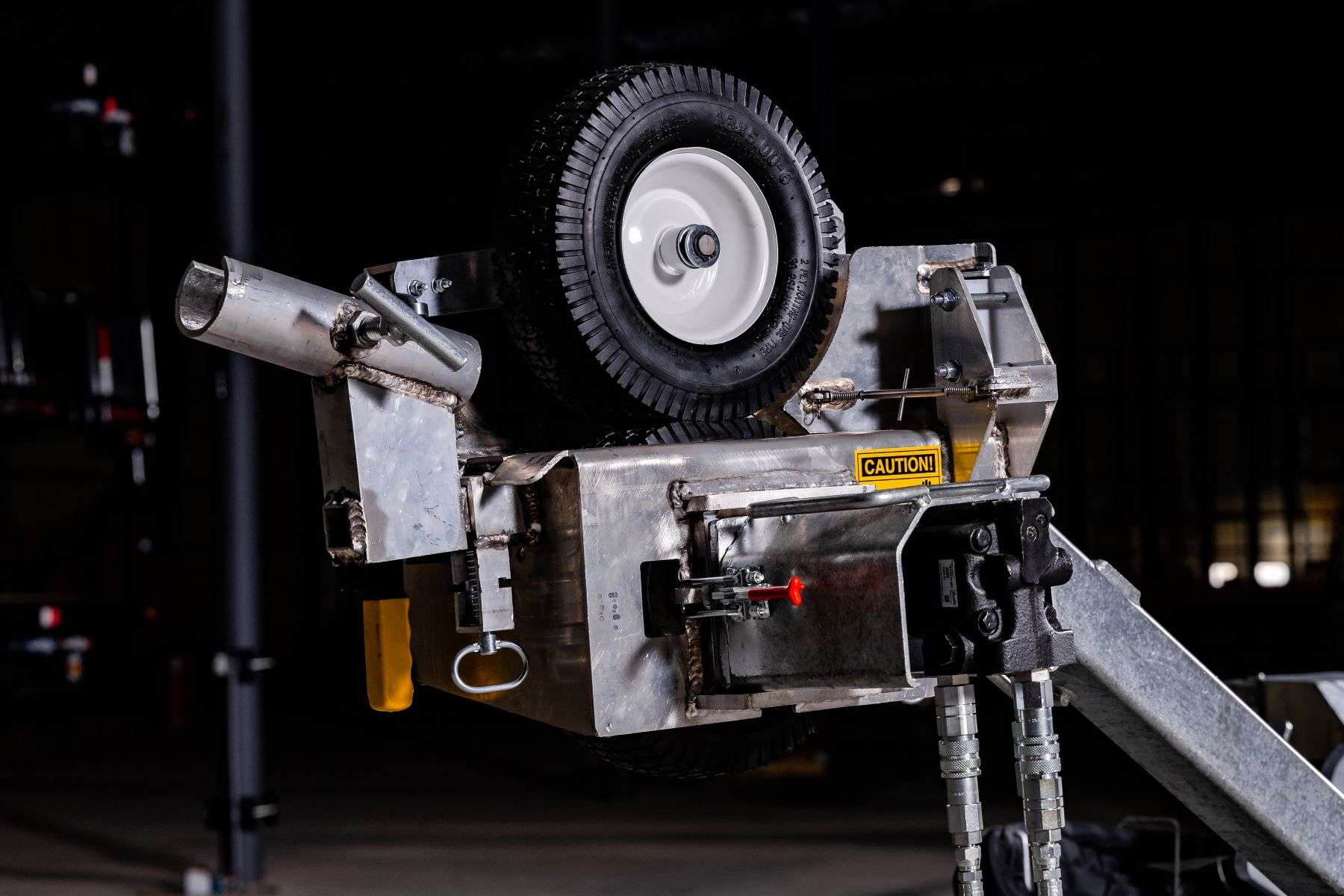

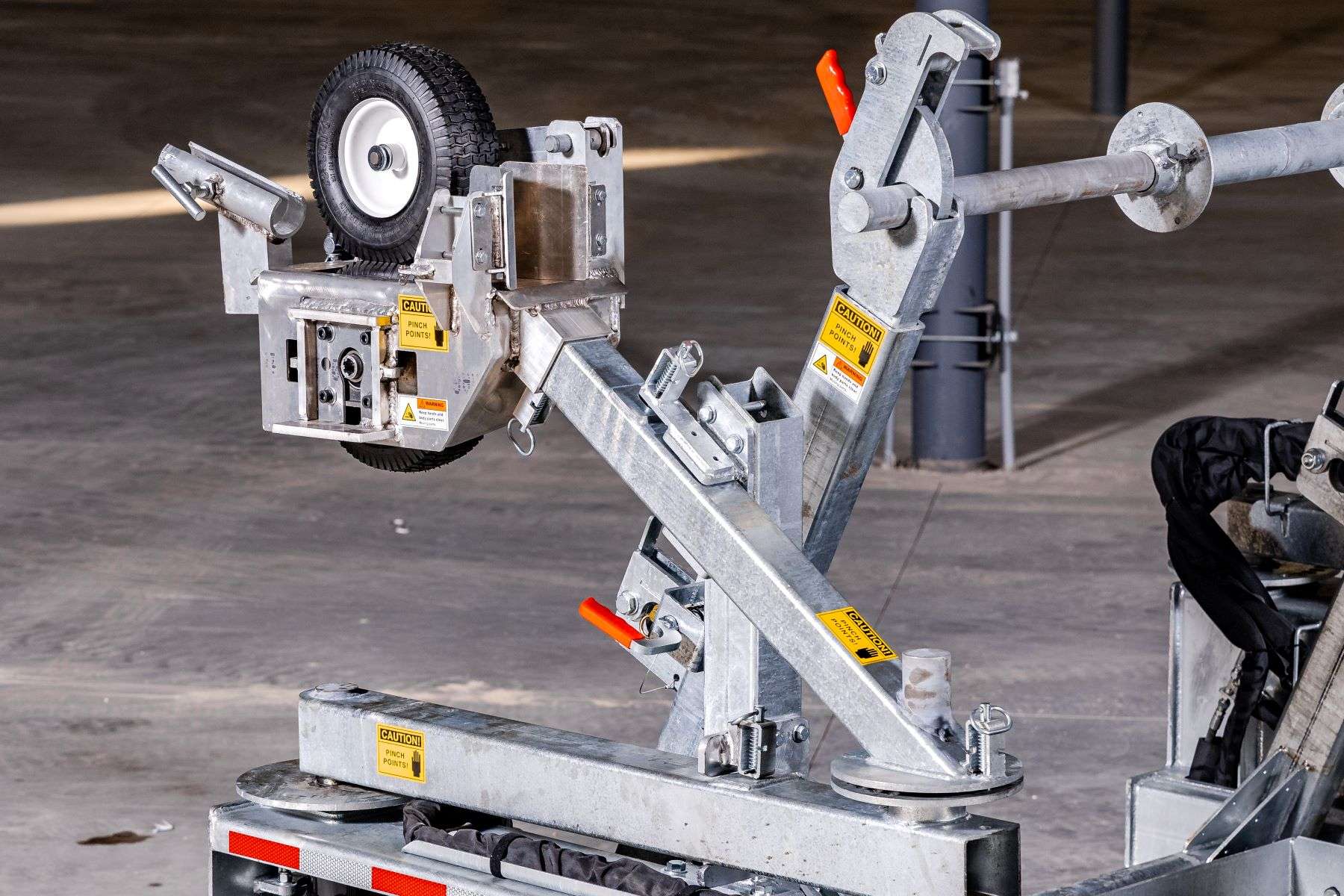

• Swing out arms for figure 8 takeout assembly and hydraulic controls – spring loaded – no removable pins
• Storage in frame of front drive rack for PVC pipes and fork pole
• Ultra high abrasion shield cover hose with hydraulic hose protection sleeves
• Sealed wiring harness with twist lock connections – LED lighting
• Trailer hot dipped galvanized finish
