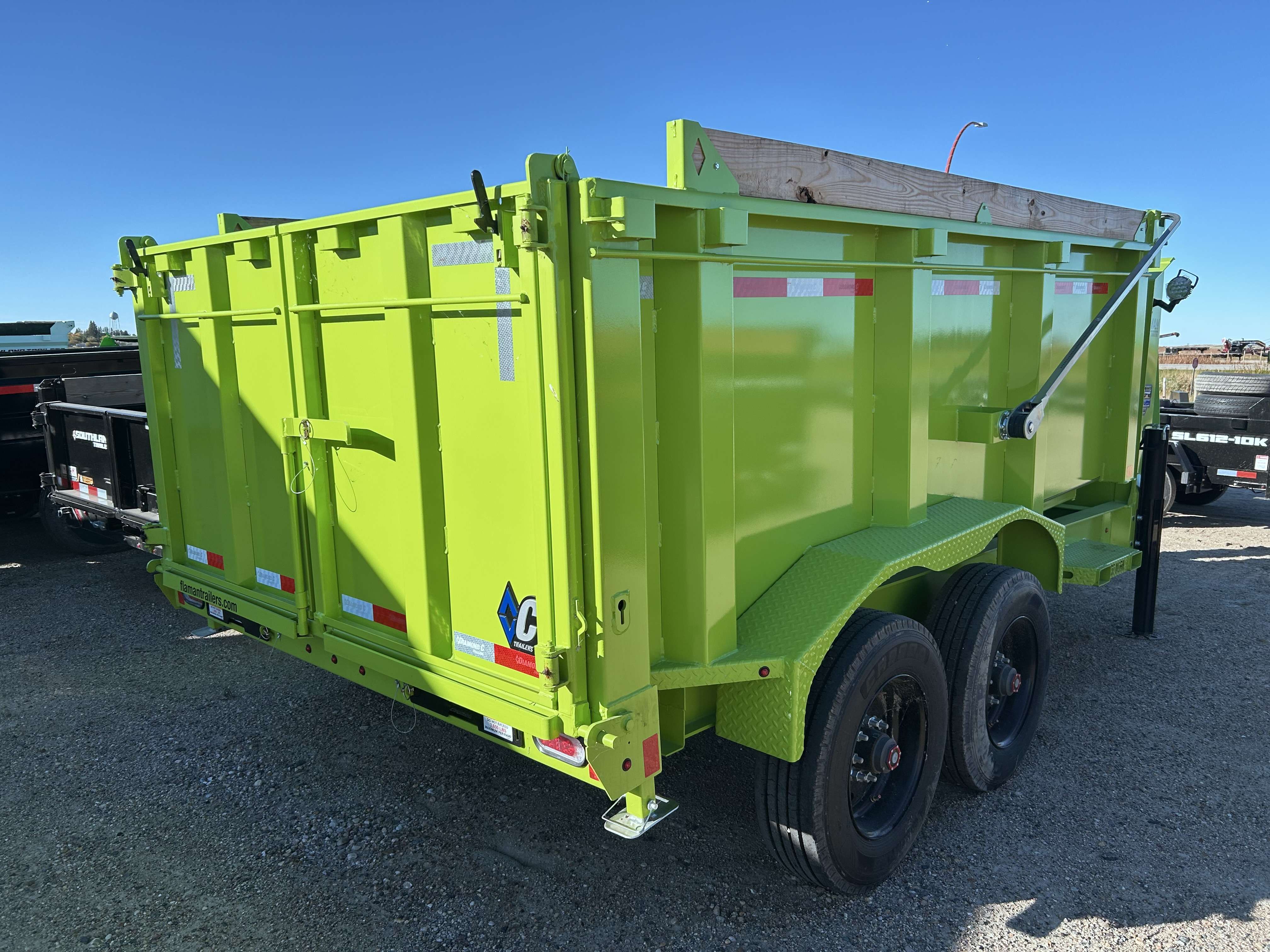

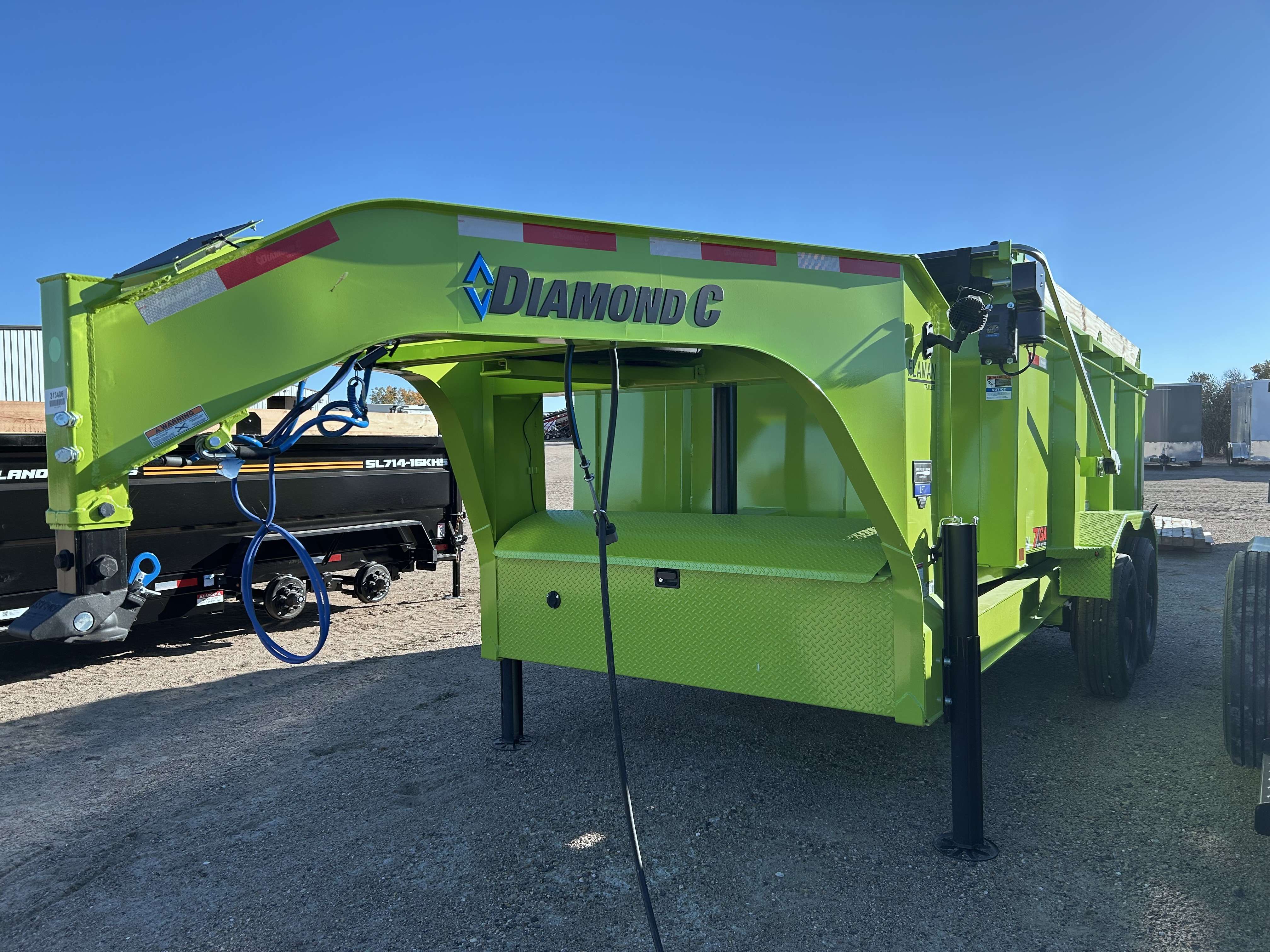

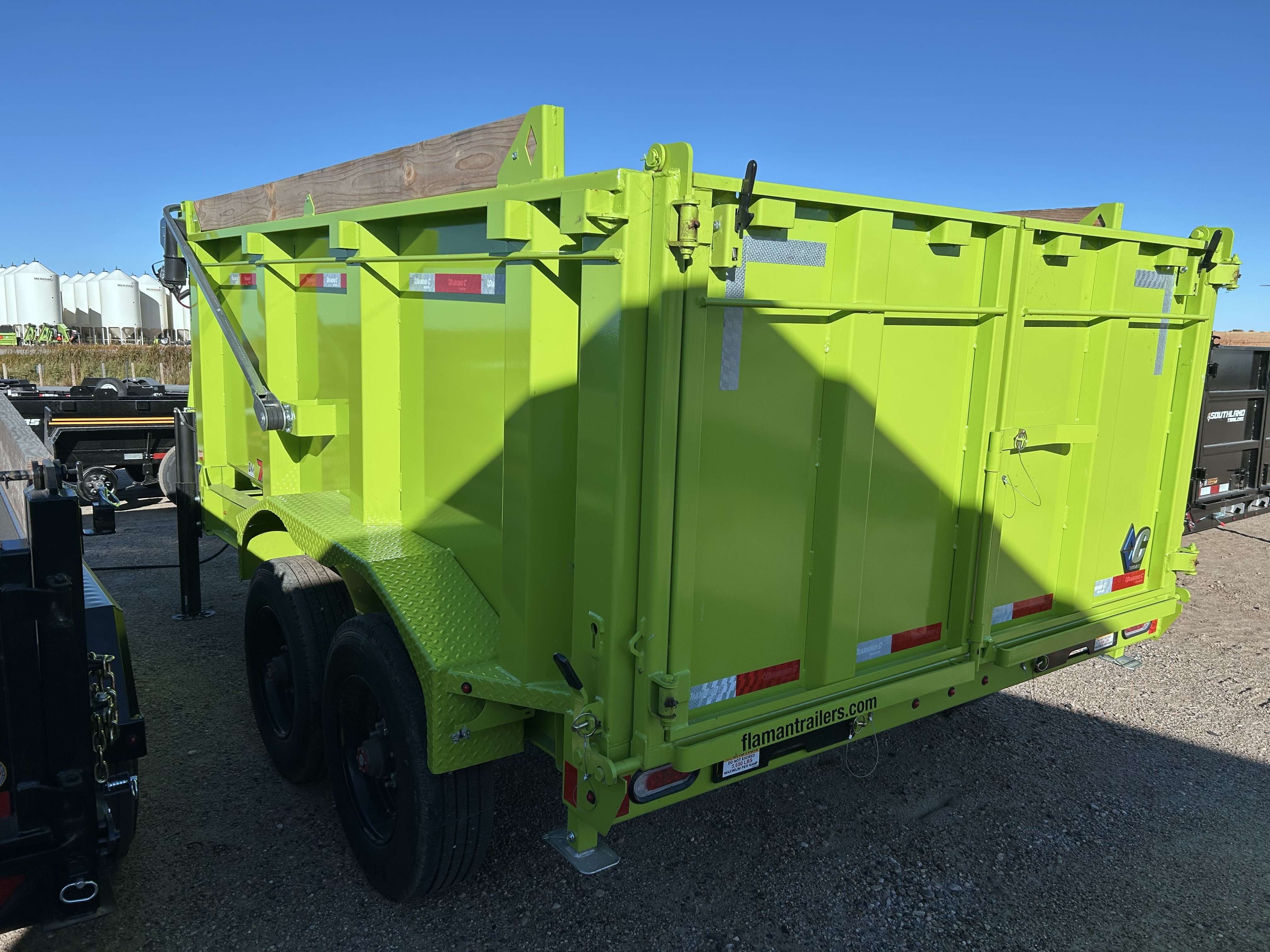

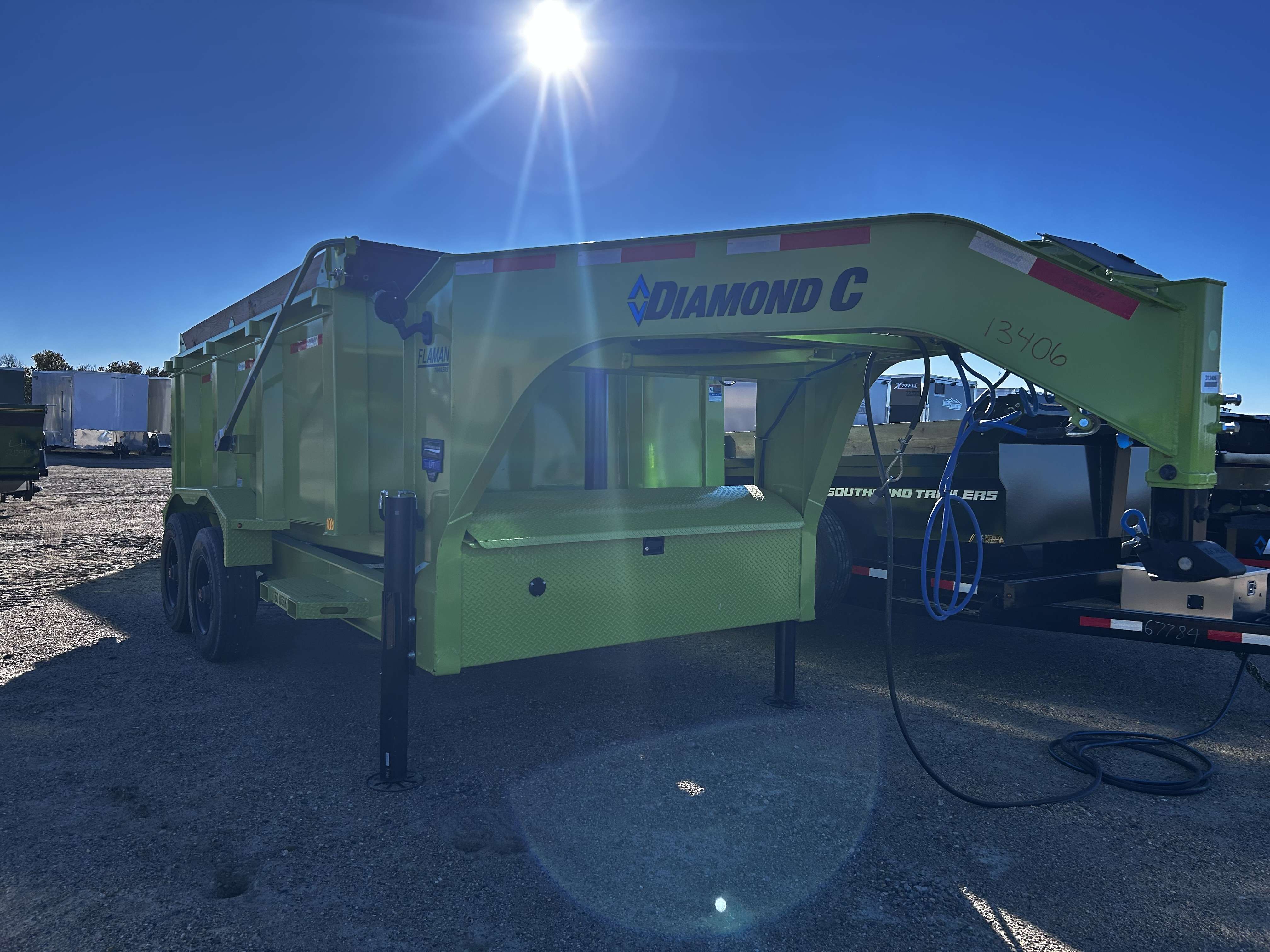

2026 Diamond C 12' Super Duty Goosneck Dump

2026 Diamond C 12' Super Duty Gooseneck Dump

• Axles: 2
• Axle Capacity: 10,000 lb

• Brakes: Electric Drum
• Colour: Lime Green
• Gooseneck: Yes

• Upgrade to Hydraulic Jack(s): (2) 20,000 lb
• Length: 12'
• Ramp(s): 78" Slide In
• Suspension: Torsion
• Width: 82"

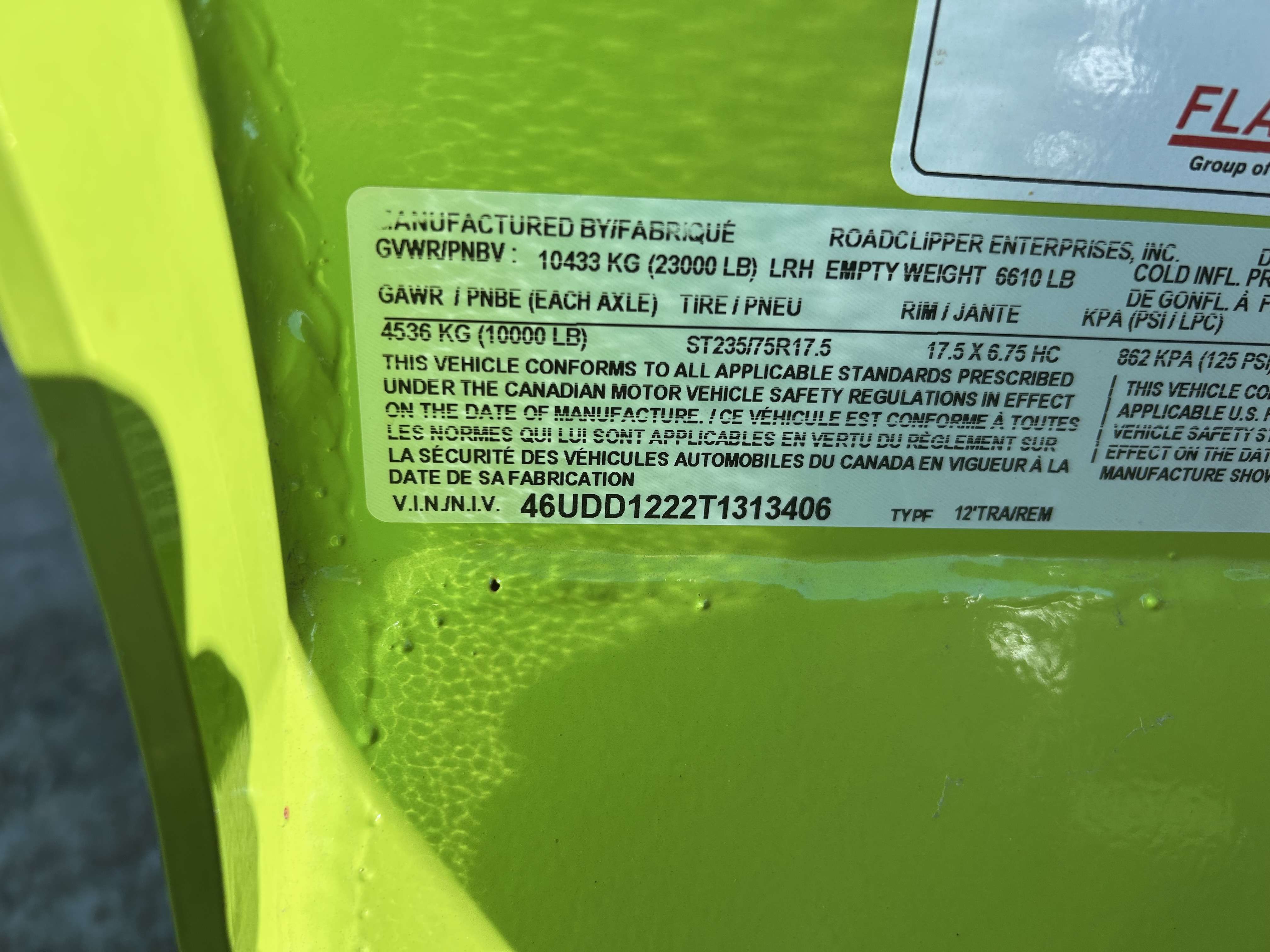

• GVWR: 23,000 lb
• Upgrade to Tire Size: ST235/75R17.5
• Option: Board Brackets w/ Raised Front
• Option: Bolt-on LED Loading Lights, 2000 Lumen
• Option: Fork Holders
• Option: 3/16" Heavy Duty Fenders
• Option: Lithium Battery Upgrade
• Option: Pacesetter Edition
• Option: 7W Solar Charging System
• Option: Rear Stabilizer Drop Legs
• Option: ShurLink Electric Tarp
• Option: 44" Sides
• Bed Control: 14' Corded Remote
• Crossmembers: 3" I-Beam on 16" Centers
• Dump Body Frame: 5" x 2" x 3/16" Rectangle Tube
• Body Thickness: 7 ga Super Duty
• Dump Main Frame: 8" x 15 lb I-Beam
• Exterior Lights: LED
• Fenders: 14 ga Teardrop, Diamond Plate
• Hoist: 3 Stage Telescopic Cylinder
• Hydraulic Power: Power Up, Gravity Down
• Side Steps: 24"
• Spare: Included
• Stake Pockets: Included

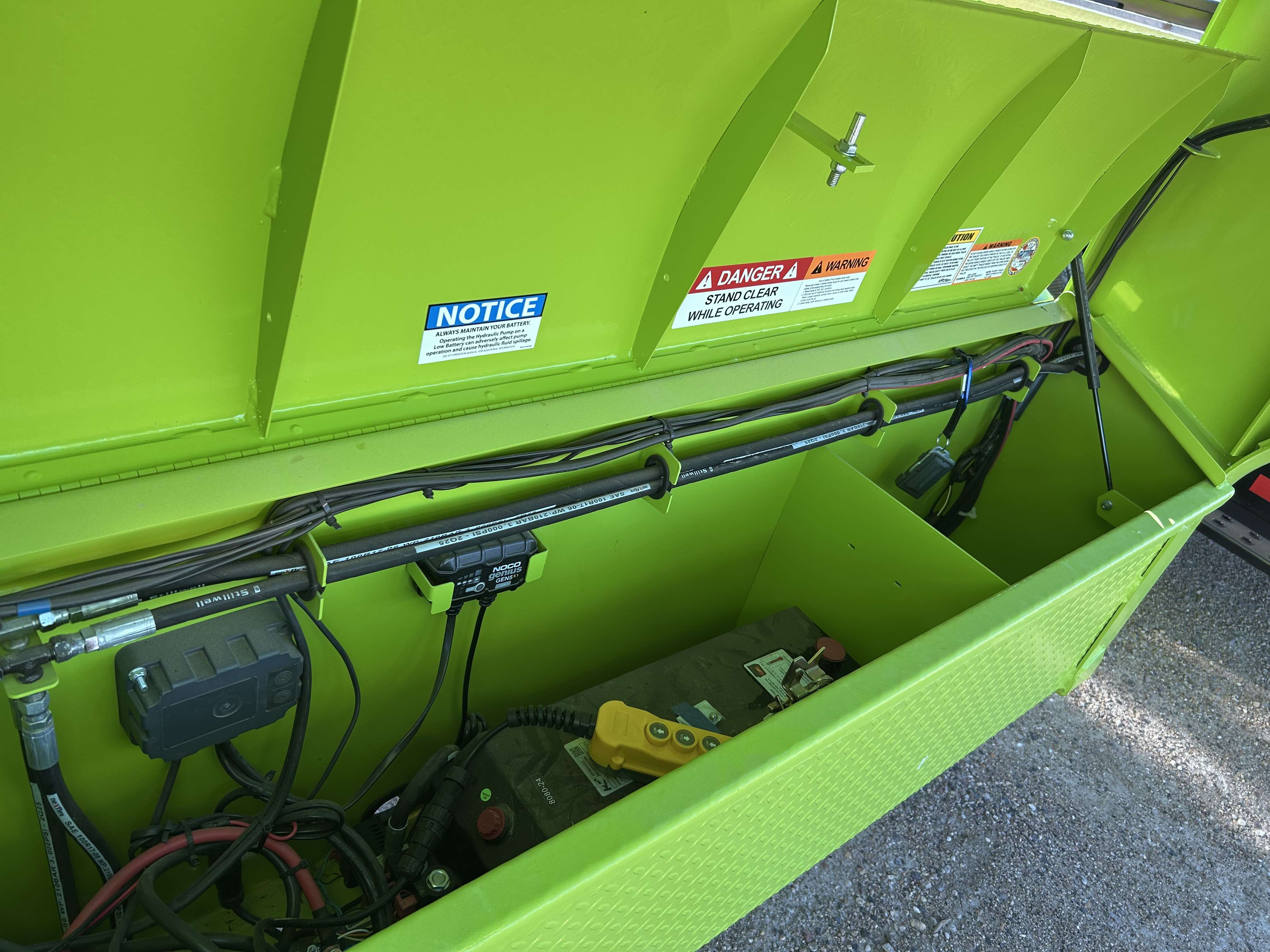

• Storage: Full Width Diamond Plate Neck Box
• Wiring: Sealed Harness
• Tie-Down D-Rings: (4) 5/8"
• Tarp: Long Arm, Easy Roll Tarp System
• Gate: 3-Way
